Why Big Brakes
The case for a big brake kit is well made by the folks at Zeckhausen Racing, who know the E39 platform as well as anyone: stock brakes were designed for one or two stops from high speed, not repeated heavy braking events with limited time to cool off. Big brake upgrades give your car greater resistance to fade by absorbing and shedding heat more efficiently. For fade resistance on the track, size really does matter.
On the street, the benefits are equally real. Fixed-mount, multi-piston calipers yield a firmer pedal and quicker reaction time in panic stops than the stock floating single-piston units. A mere 0.2 second improvement in reaction time translates into 21 feet of stopping distance at 70 mph. You don't need to be a racer to benefit from that.
The StopTech Kit
StopTech's approach to big brake design is built around one key principle: increase heat capacity and reduce compliance without upsetting the stock front-to-rear brake torque ratio. Too many kits add so much front brake torque that they actually reduce the car's ability to use all four tires to their maximum traction — even on ABS-equipped cars. StopTech designs for optimum brake bias at both ends, which is why a four-wheel kit matters.

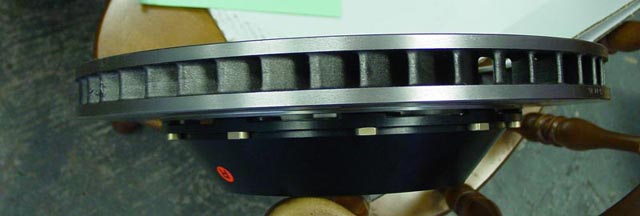

The kit fitted here runs 355mm rotors at all four corners — 4-piston fixed calipers up front, single-piston at the rear. The StopTech AeroRotor uses uniquely designed AeroVanes to optimize airflow through the disc, and the forged aluminum calipers weigh just 7.65 lbs — less than the stock iron units despite being significantly larger.

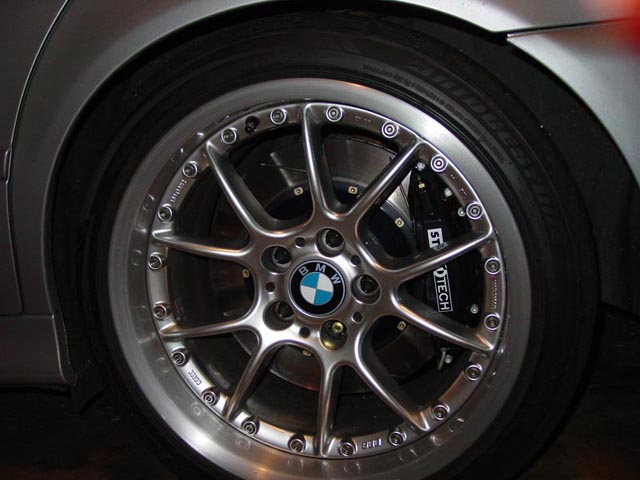

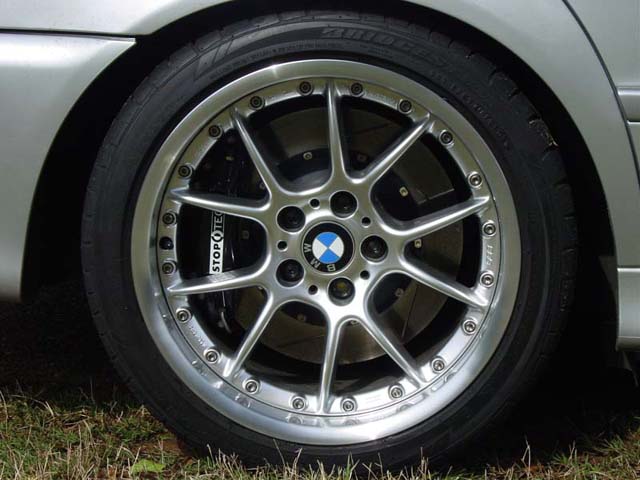

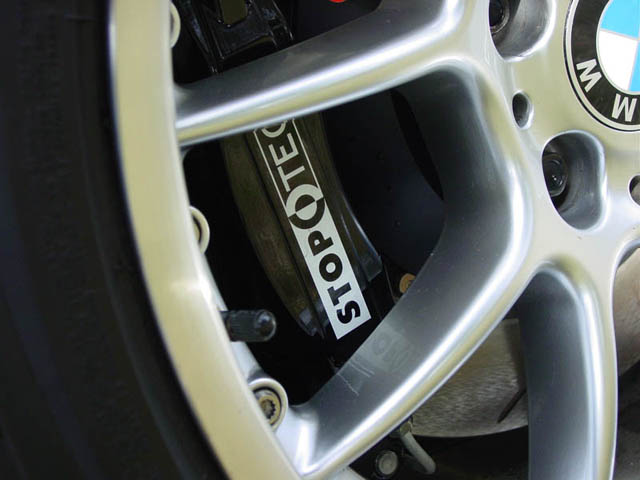

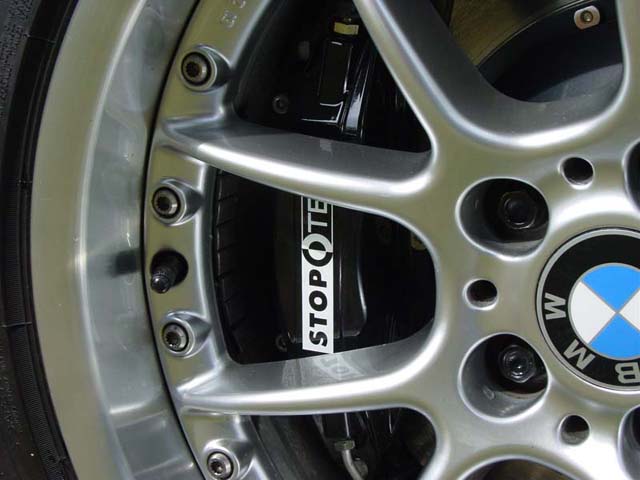

The Rear Fitment

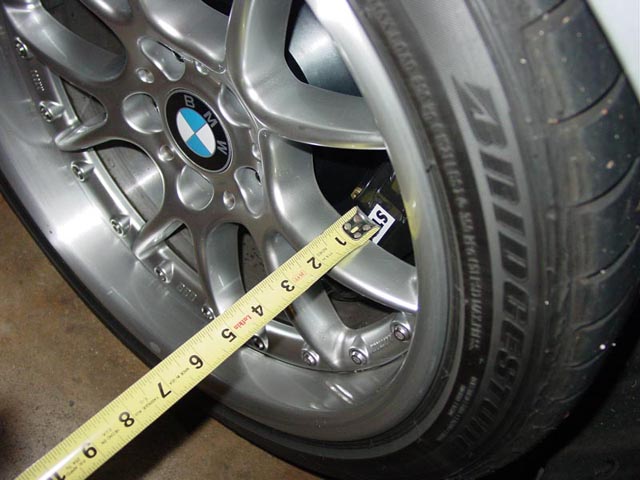

The rear was the engineering challenge. Squeezing a 355mm rotor into the space previously occupied by a 298mm stock rotor — without a wheel spacer — required StopTech to iterate through several bracket designs. The fit is very close. When it went together it was genuinely satisfying, because you could see exactly how little margin there was. It clears. But it clears precisely.
The parking brake functions exactly as stock — the rear rotor hats double as drums for the handbrake, so there's no compromise there either.
The fit was very close. But it was a great upgrade — for all of the reasons that big brakes work well. The pedal is firmer, the feel is immediate, and you know exactly what the car is doing when you get on them. On a 540i with a V8, that matters.
